Home > Technology > Square Wire Mesh Netting - Galvanized after Welding

Square Wire Mesh Netting Wire Diameter 16-23 Gauge

  • Galvanized square mesh wire mesh in roll, wire diameter: 2.7 mm, hole size: 25 × 25 mm.
  • Galvanized square mesh wire mesh in roll, wire diameter: 3.9 mm, hole size: 40 × 40 mm.
  • Electro galvanized iron wire welded rectangular mesh wire, wire diameter: 16 gauge, aperture size: 1/2" × 1", mesh size: 4' × 100'.
  • Electro galvanized hexagonal wire netting "galvanized after weaving", wire diameter: 22 gauge, aperture size: 1/2" × 1", mesh size: 3' × 150'.
  • Galvanized square mesh.
    • Mesh specification: 10 × 10 × 100 cm × 25 m.
    • Mesh specification: 10 × 10 × 100 cm × 25 m.
Electro galvanized square mesh wire netting "galvanized after welding".
Item Wire diameter (gauge) Aperture size Mesh size Weight (kg)
EGSMW-01 19 1/2" 3' × 100' 30
EGSMW-02 16 1/2" 3' × 100' 58
EGSMW-03 16 3/4" 3' × 100' 40
EGSMW-04 16 1/2" 4' × 100' 60
EGSMW-05 19 1/2" 4' × 100' 30
EGSMW-06 19 3/4" 3' × 100' 20
EGSMW-07 23 1/4" 3' × 100' 26.8
EGSMW-08 19 1" 3' × 100' 14
EGSMW-09 22 1/2" 3' × 100' 14
EGSMW-10 16 1/2" 4' × 100' 77
Many pieces of galvanized welded wire mesh without frame are placed together.
Galvanized welded wire mesh with uniform holes.

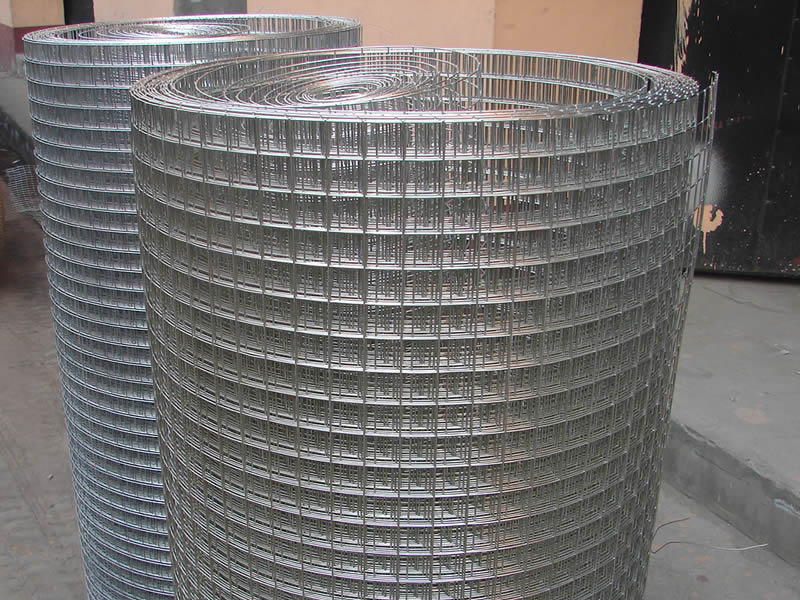

Two rolls of galvanized welded wire mesh with square holes.
Galvanized welded wire mesh with square holes in roll.
If you need to consult the price, please contact the business department by e-mail:

Anping No.1 Welded Mesh Panels Factory. will service for you !
E-mail: info@weldedwiremeshpanel.com

When you contact us, please provide your detail requirements. That will help us give you a valid quotation.
