Highly Secure Twin Wire Rebound Fencing for Ballparks

This is a PVC coated double wire fence.

Twin wire rebound fencing

Twin wire rebound fencing is a rigid and secure welded mesh fence. It is suitable for pitches, urban kick zones, field hockey, professional pitches and all types of sports and recreational areas. Twin wire rebound fencing has maximum resistance performance to heavy impact. The height range of the fence is 2 m to 6 m. With the lower 1,200 mm of the fence near the ground, it has a wire spacing of 66.6 mm × 50 mm, and the rest of the top has a wire spacing of 200 mm × 50 mm. Closer spacing of the wires at the bottom of the fence gives it a high rebound performance, which helps the ball bounce back onto the pitch.

Structure

Wire Diameter

  • 656 – 6 mm double horizontal wires and 5 mm vertical wires
  • 868 – 8 mm double horizontal wires and 6 mm vertical wires
Twin wire rebound fencing wire diameters: horizontal 6 mm and vertical 5 mm

656

Twin wire rebound fencing wire diameters: horizontal 8 mm and vertical 6 mm

868

Aperture

  • 66.6 mm × 50 mm – Ground to 1.2 m high
  • 200 mm × 50 mm – 1.2 m high to the top
A partial view of a piece of mesh labeled with 2 mesh aperture sizes

Unique aperture structure

Height

Range of heights from 2.0 m, 2.4 m, 3.0 m, 3.1 m*, 3.6 m*, 4.0 m*, 4.5 m*, 5.0 m*, 6.0 m* high. (* Fencing is made of multiple panels)

Width

Panels are 2,506 mm wide.

Finish

Panels and posts are galvanized and powder coated, and all fixings are fully galvanized.

Post Fixation

Dig-in, and bolt-down

Installation

M8 washer, stainless steel security screw, bottom U clip, full length clamp bar, and post cap

Front and exploded views indicate twin wire rebound fencing dimensions and structural components.
Table 1: Specification of Twin Wire Rebound Fencing
Nominal Fence Height
(m)		 Panel Size
Height × Width
(mm)		 Post Size
(mm) Ends/Inters		 Post Size
(mm)		 Overall Length of Post
(mm)		 Number of Fixings
Internal Corner External Corner Ends/Inters
(1 Clamp)		 Corners
(2 Clamps)
2.0 2,030 × 2,506 60 × 40 60 × 40 60 × 60 2,700 9 18
2.4** 2,400 × 2,506 60 × 40 60 × 40 60 × 60 3,200 10 20
3.0 3,030 × 2,506 80 × 40 80 × 40 80 × 80 3,900 12 24
3.1* 3,060 × 2,506 80 × 40 80 × 40 80 × 80 3,900 13 26
3.6* 3,660 × 2,506 80 × 40 80 × 40 80 × 80 4,600 15 30
4.0* 4,060 × 2,506 100 × 50 100 × 50 80 × 80 5,100 16 32
4.5* 4,460 × 2,506 100 × 50 100 × 50 80 × 80 5,500 19 38
5.0* 5,060 × 2,506 100 × 50 100 × 50 80 × 80 6,200 21 42
6.0* 6,080 × 2,506 120 × 60 120 × 60 100 × 100 7,500 24 48
* Fencing is made of multiple panels and a clamp bar.
** No extra vertical wire is left at the top of the fencing.

Features

  • System is easy to install and allows the panels to be stepped, helping the fence line follow the contours of the ground.
  • System can be supplied complete with gates to suit.
  • Galvanized coating ensures the durability of the system.
  • Metal mesh ensures high visibility of the environment inside the fence.
  • With reactive and resilient performance, it is the best choice of court fencing for schools, neighborhoods, stadiums, and other settings.

Application

Soccer field with twin wire rebound fencing installed

Twin wire rebound fencing for soccer field

Basketball court with twin wire rebound fencing installed

Twin wire rebound fencing for basketball court

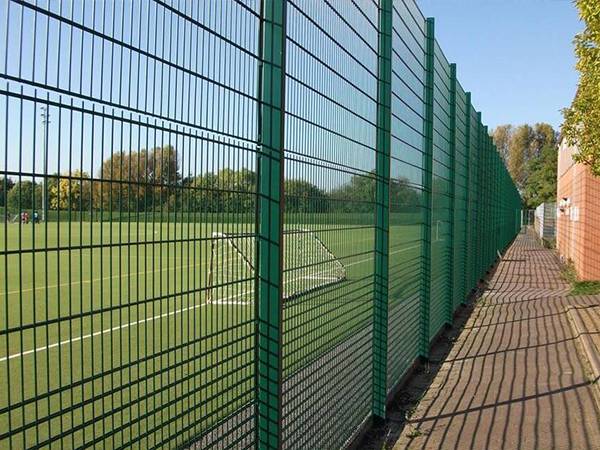

Raised fence on top of twin wire rebound fencing for soccer fields

Twin wire rebound fencing with multi-panel fixation

Twin wire rebound fencing divides the adjacent courts, and leave access in between.

Twin wire rebound fencing for court zoning
