Panoramic Padel Court for Competition & Recreation

The panoramic padel court delivers a stable and professional playing experience while immersing spectators in every exciting moment through its transparent panoramic design. Built with a strong commitment to quality, the system fully complies with the standards and specifications of the International padel Federation (FIP), ensuring suitability for both competitive events and recreational use.

Designed as an intelligent sports space for modern lifestyles, it integrates competition, social interaction, and visual aesthetics to redefine the padel experience. The system can also be paired with professional-grade rackets and training equipment, enabling a seamless transition between training and leisure play.

The court has a standard size of 20 × 10 meters and is constructed with a galvanized steel frame, finished with a powder-coated surface treatment for enhanced durability and weather resistance.

Specifications

Upper Fence:
- Mesh opening: 50 × 50 mm
- Frame: 30 × 50 × 2 mm
Side of the fence
- Mesh diameter: 4 mm
- Mesh opening: 50 × 50 mm
- Frame: 30 × 50 × 2 mm
Corner Post
- Size: 100 × 100 × 3 mm
- Length: 3 m
Post for the fence frame
- Size: 50 × 100 × 3 mm
- Length: 3 m / 2 m
10 m side upper and lower beams
- Beam size: 100 × 50 × 3 mm
- Length: 5 m
Side upper and lower beams
- Size: 100 × 50 × 3 mm
- Beam: 50 × 100 × 4000 mm
Lamp post
- Height: 6000 mm
- Size: 50 × 100 × 3000 mm
Net Post
- Height: 1100 mm
- Post size: 50 × 100 × 3 mm
Glass
- Size: 1995 × 2995 mm
- Thickness: 12 mm
Net
- Length: 10 m
- Height: 1000 cm
- Material: PP
Lamps
- Power: 200 W LED
Lawn
- Thickness: 12 mm

Padel court with numbered dimension indicators.

Padel court dimension diagram

Applications

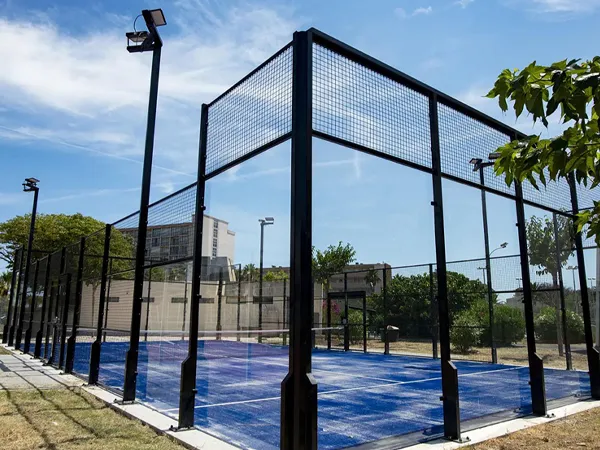

Outdoor panoramic padel court

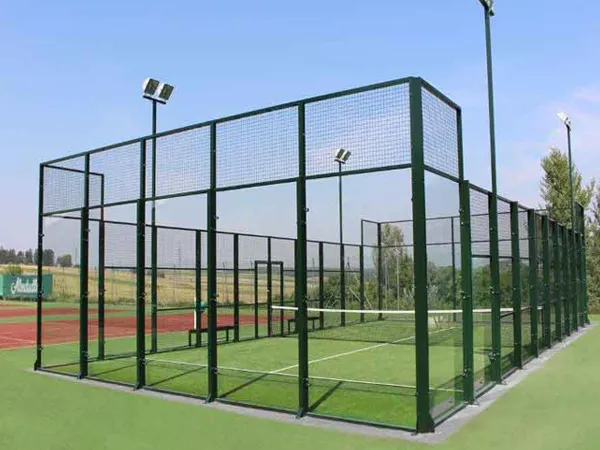

Green panoramic outdoor padel court
