Mild Steel Copper Wash Welded Mesh Providing Minimal Early Corrosion Resistance

Cross and line wires are welded together.

Our self-colored steel welded mesh is usually supplied with a thin copper-washed coating that provides minimal early corrosion resistance and is used as a catalyst during any further welding process. Use for security cages, gabions, and dog runs.

It has a copper layer after copper washed, which has several advantages, including better corrosion resistance and conductivity, as well as giving the mesh a more aesthetically pleasing appearance.

Features

  • Raw material: Copper washed direct drawn steel wire (conforming to BS 1052:1980)
  • Wire diameter: 2.00 mm – 4.75 mm
  • Surface treatment: Hot dip galvanized (conforming to BS EN ISO 1461:2009)

Specification

Galvanized / Self-Colored Welded Mesh Sheets Welded Mesh Roll Widths
(60' & 120' Lengths)
- 4' × 8' 6' × 12' 6' × 3' 6' × 4' 7' × 12' 4' 6' 7'
1" × 1" × 8 gauge • • • • • - - -
1" × 1" × 10 gauge • • • • • • • •
1" × 1" × 12 gauge • • • • • • • •
2" × 1" × 8 gauge • • • • • • • •
2" × 1" × 10 gauge • • • • • • • •
2" × 1" × 12 gauge • • • • • • • •
2" × 2" × 6 gauge • • • • • • • •
2" × 2" × 8 gauge • • • • • • • •
2" × 2" × 10 gauge • • • • • • • •
2" × 2" × 12 gauge • • • • • • • •
3" × 1/2" × 8 gauge • • • • • • • •
3" × 1/2" × 10 gauge • • • • • • • •
3" × 1/2" × 12 gauge • • • • • • • •
3" × 1" × 10 gauge • • • • • • • •
3" × 1" × 12 gauge • • • • • • • •
3" × 3" × 6 gauge • • • • • • • •
3" × 3" × 8 gauge • • • • • • • •
3" × 3" × 10 gauge • • • • • • • •
3" × 6" × 6 gauge • • • • • • • •
4" × 4" × 10 gauge • • • • • - - -
1-1/2" × 1-1/2" × 10 gauge • • • • • - - -
1-1/2" × 1-1/2" × 12 gauge • • • • • - - -
1" × 1" × 3.4 mm • - - - - - - -
2" × 2" × 3.4 mm • - - - - - - -
Note: "•" represents availability of this size.
Conversion Table: Gauge to Millimeter
Gauge Self-Colored Thickness
(mm)		 Galvanized Thickness
(mm)
22 0.66 0.70
19 0.91 1.00
16 1.52 1.60
14 1.93 2.00
12 2.44 2.50
10 3.00 3.10
8 3.88 4.00
6 4.69 4.8
Note: All values are approximate.

Products Display

Mild steel copper wash welded mesh after copper washed

Cross and line wires detail

Lots of mild steel copper mesh welded mesh panels packed together

Mild steel copper mesh welded mesh panel

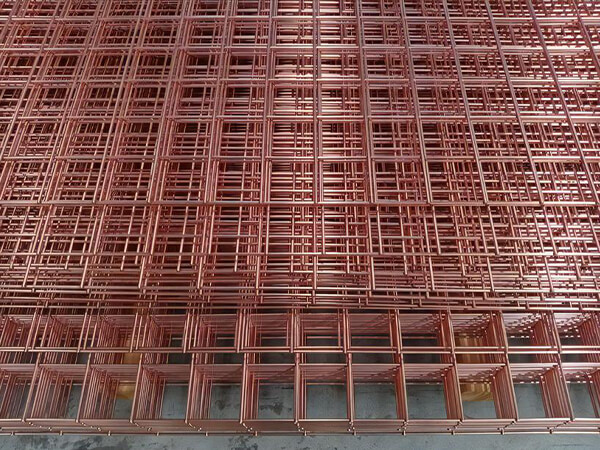

Lots of mild steel copper mesh welded mesh panels packed together on the ground

Mild steel copper mesh welded mesh panels on the ground

A roll of mild steel copper mesh welded mesh on the machine

Mild steel copper mesh welded mesh roll on the machine

A roll of mild steel copper mesh welded mesh on the ground

Mild steel copper mesh welded mesh roll on the ground

2 rolls of mild steel copper mesh welded mesh wrapped with plastic film

Mild steel copper mesh welded mesh roll packaging

Applications

  • Multi use fabrications
  • Window guards
  • Machinery guards
  • Cages and lockers
  • Shelving and racking
  • Security grills
  • Dog guards
  • Point of sale display
  • Autoclave baskets
