Trench Mesh From Ribbed Steel Wire for Narrow Space Construction

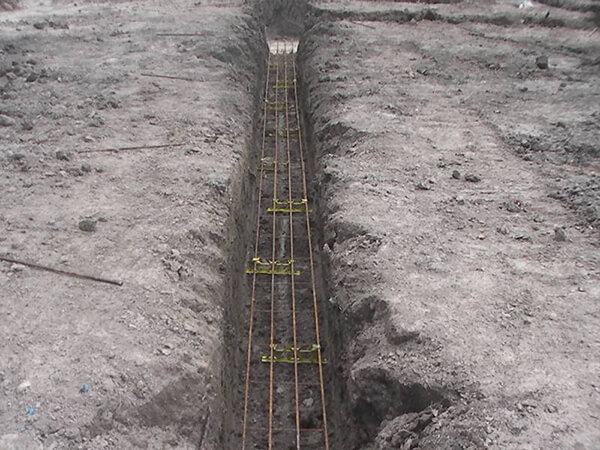

Trench mesh is typically used in residential, industrial, and commercial buildings to reinforce concrete footings and beams. It is widely used for trenches, paths, and other narrow concrete structure reinforcement.

Trench mesh is supplied in sheet sizes 6 m × 0.2 m to 6 m × 0.5 m and is available in 3, 4, 5, and 6 longitudinal wires (3-bar, 4-bar, 5-bar, and 6-bar), as well as wire diameters in 8 mm, 11 mm, 12 mm, and 16 mm.

3-bar, 4-bar, and 5-bar trench meshes in detail

Specification

Material: carbon steel or stainless steel or as client's request
Surface treatment: no treatment, galvanized or painted
Length: 6,000 mm
Width: 200–500 mm

Table 1: Detailed Specifications of Trench Mesh
Length (m)	Width (m)	No. of Main Wires	Main Wires (mm)	Cross Wires (mm)	Weight (kg/sheet)
6.0	0.2	3	7.6 @ 100	4 @ 300	7
6.0	0.3	4	7.6 @ 100	4 @ 300	9
6.0	0.4	5	7.6 @ 100	4 @ 300	12
6.0	0.5	6	7.6 @ 100	4 @ 300	14
6.0	0.2	3	10.65 @ 100	4.77 @ 300	13
6.0	0.3	4	10.65 @ 100	4.77 @ 300	18
6.0	0.4	5	10.65 @ 100	4.77 @ 300	22
6.0	0.5	6	10.65 @ 100	4.77 @ 300	27
6.0	0.2	3	11.9 @ 100	4.77 @ 300	16
6.0	0.3	4	11.9 @ 100	4.77 @ 300	22
6.0	0.4	5	11.9 @ 100	4.77 @ 300	27
6.0	0.5	6	11.9 @ 100	4.77 @ 300	33
6.0	0.2	3	15.9 @ 100	4.77 @ 300	31
6.0	0.3	4	15.9 @ 100	4.77 @ 300	41

Features

High strength & high stability. It is typically made of high-strength steel with a ribbed or deformed profile.
Standard size. It is designed in a grid pattern with longitudinal main wires and transverse cross wires.
Easy connection & reinforcement continuity. It has overlapping sections for easy connection and continuity of reinforcement. It is often coated for corrosion resistance and complies with industry standards and regulations.
Lightweight & easy to handle. It can be cut or bent to fit specific project requirements.
