Custom Wire Mesh Fence Solutions for Cebu Philippines

Wire mesh fence provides a balance of security, visibility, and structural strength, making it a practical solution for perimeter protection in industrial, commercial, and public facilities.

In this project, a customized wire mesh fence system was implemented in Cebu, Philippines. The fence system was designed according to the site layout and application requirements, using welded wire mesh panels installed on steel posts and anchored to a concrete base. The solution provides clear boundary definition, structural stability, and suitability for outdoor environments.

• Fence panel:
  • Wire diameter: 4 mm
  • Mesh size: 50 × 150 mm
  • Height: 2030 mm
  • Width: 2500 mm
  • Number of curves: 4
  • Surface treatment: Hot dip galvanized + powder coated (RAL 7061)
• Square post:
  • Post size: 60 × 60 × 1.5 mm
  • Height: 2600 mm
  • Surface treatment: Hot dip galvanized + powder coated (RAL 7061)
• Accessories:
  • Plastic cap: Black color
  • Metal fixings: For post 60 × 60 mm (RAL 7061)

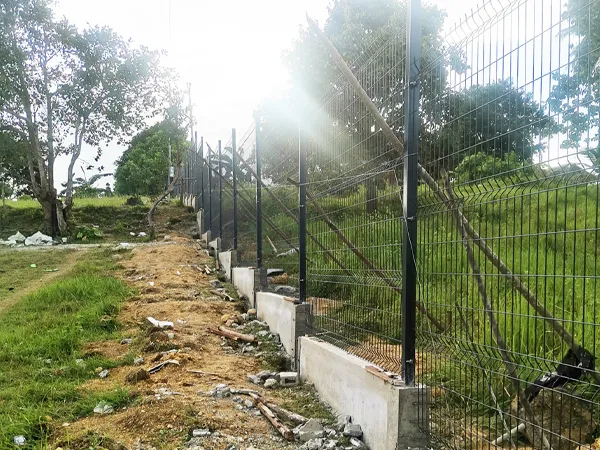

Overall installation result

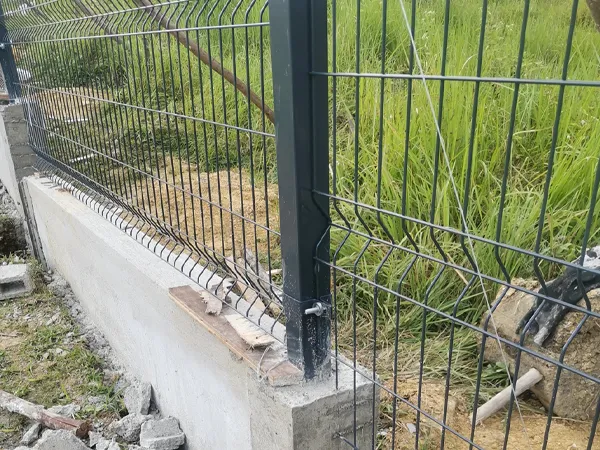

Installation details
